OPTIVIS 0.3MP VGA USB2.0 Camera

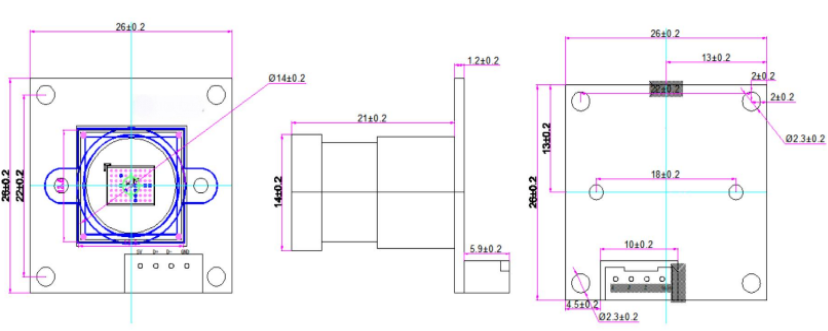

This 0.3MP VGA USB2.0 camera module is engineered for versatile embedded vision applications, powered by a 1/4-inch GC0403 CMOS image sensor. It delivers a maximum resolution of 640×480 with a 6.25×6.25μm pixel size and supports high frame rates up to 60FPS at 640×480 (MJPEG) and 320×240 (MJPEG). Adopting a compact 26×26mm form factor, it features a 108° wide field of view, electronic rolling shutter, and fixed/manual focus options.

Compliant with UVC protocol, the module offers true plug-and-play compatibility with Windows, Android, Linux, Mac OS and other systems. Adjustable parameters include brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight and exposure, enabling flexible image tuning. Powered by DC 5V with a 90mA working current, it uses a 4PIN 2.0mm connector and comes with a default 1.0-meter USB cable. Reliable under -20°C to 60°C operating conditions and -20°C to 85°C storage, it is an ideal choice for industrial, IoT, and multimedia imaging projects.
