OPTIVIS 5MP USB2.0 High Resolution Camera Module

This OVT-S255C is a high-definition 5MP USB 2.0 camera module designed for industrial vision, video conferencing, smart devices, and embedded imaging systems. It supports up to 2592×1944 QSXGA resolution and 1080P FHD, delivering sharp, detailed images with YUY2/MJPG output formats and stable frame rates.

Built with a 1/5-inch high-sensitivity sensor (1.12μm×1.12μm pixel), this module features fixed focus, a 3P+IR lens with 71.8° wide field of view, F/2.4 aperture, and a 650nm IR filter for natural, accurate color reproduction. It also integrates a high-performance MEMS digital microphone (DMIC) for clear audio capture.

Fully UVC compliant, it supports plug-and-play on Windows 7/8/10/11 without extra drivers. Rigorously tested for reliability -including high/low temperature, thermal shock, vibration, drop, and ESD protection-it ensures stable performance in demanding environments.

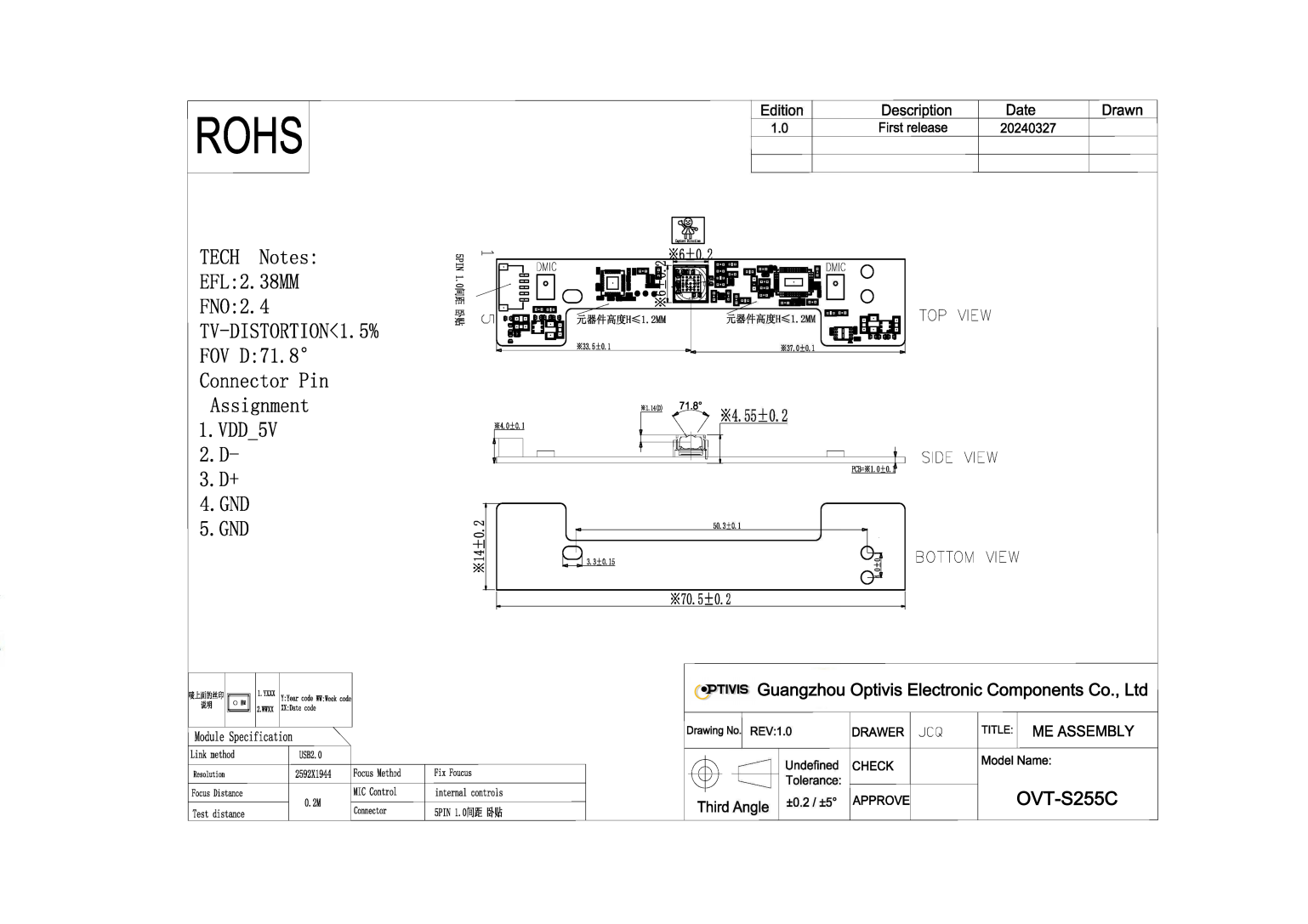

With a compact size (70.5×14×4.55mm) and easy integration, OVT-S255C is an ideal choice for high-resolution embedded vision, industrial inspection, smart displays, and all-in-one devices.
