OPTIVIS 5MP OV5693 USB2.0 High Dynamic Range Camera Module

This OVT-S815C is a high-definition 5MP USB 2.0 camera module powered by the advanced OV5693 sensor, ideal for embedded vision, industrial inspection, video conferencing, and smart device integration. It supports up to 2592×1944 QSXGA resolution and 1080P FHD, delivering ultra-clear images with YUY2/MJPG output and smooth frame rates.

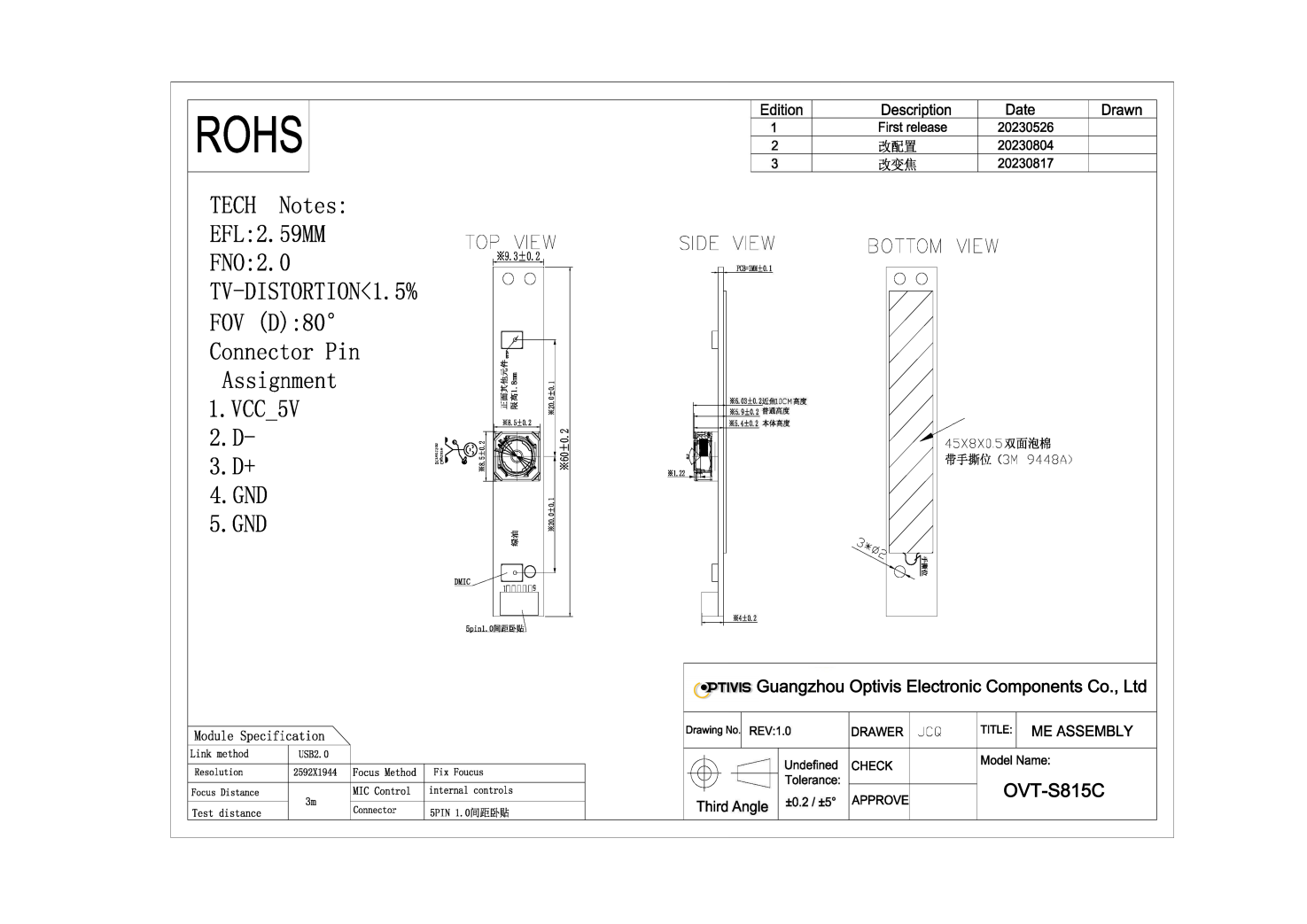

This compact module (60×9.3×6.03mm) features fixed focus, a 4P+IR lens with 80° wide field of view, F/2.0 large aperture, and high sensitivity for excellent low-light performance. It integrates a high‑quality MEMS digital microphone (DMIC) for clear audio capture, perfect for video calls and recording.

Fully UVC compliant, it supports plug-and-play on Windows 7/8/10/11 without additional drivers. Rigorously tested for reliability-including high/low temperature, thermal shock, vibration, drop, and ESD protection-it ensures stable performance in demanding environments.

With professional color reproduction, high resolution, and easy integration, OVT-S815C is the ideal choice for industrial vision systems, smart displays, all-in-one PCs, and compact embedded devices.

Size

60*9.3*6.03mm

Sensor

1/4’-inch OV5693 CMOS

Pixel Size

1.4um x 1.4um

Resolution

2592H x 1944 V

Output Format

MJPEG, YUV2

FOV

80 Degree

Shutter Type

Electronic rolling shutter

Interface

High Speed USB2.0

Controllable Parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White Balance, Backlight Contrast, Exposure

Supported OS

Windows, Android, Linux, Wince, Mac OS

Cable Length

Default 1.0 Meter USB Cable

Format

Resolution

FrameRate (USB2.0)

MJPEG

2592 x 1944

15-30FPS


1920 x 1080

15-30FPS


1280 x 960

15-30FPS


1280 x 720

15-30FPS


800 x 600

15-30FPS


640 x 480

15-30FPS

YUV2

2592x 1944

0-5FPS


1920 x 1080

0-5FPS


1280 x 960

0-5FPS


1280 x 720

0-10FPS


800 x 600

0-15FPS


640 x 480

15-30FPS
