OPTIVIS 2MP 1080P USB2.0 Fixed Focus Ultra-Slim Camera Module
OPTIVIS 2MP USB2.0 Ultra-Slim Camera Module
This OVT-S200C is an ultra-slim 1080P USB 2.0 camera module engineered for notebooks, all-in-one PCs, embedded systems, and video communication devices. Powered by a 1/5-inch SC520CS sensor with 1.12μm×1.12μm pixels, it delivers crisp 1920×1080 FHD imaging with YUY2/MJPG output and smooth frame rates across resolutions.

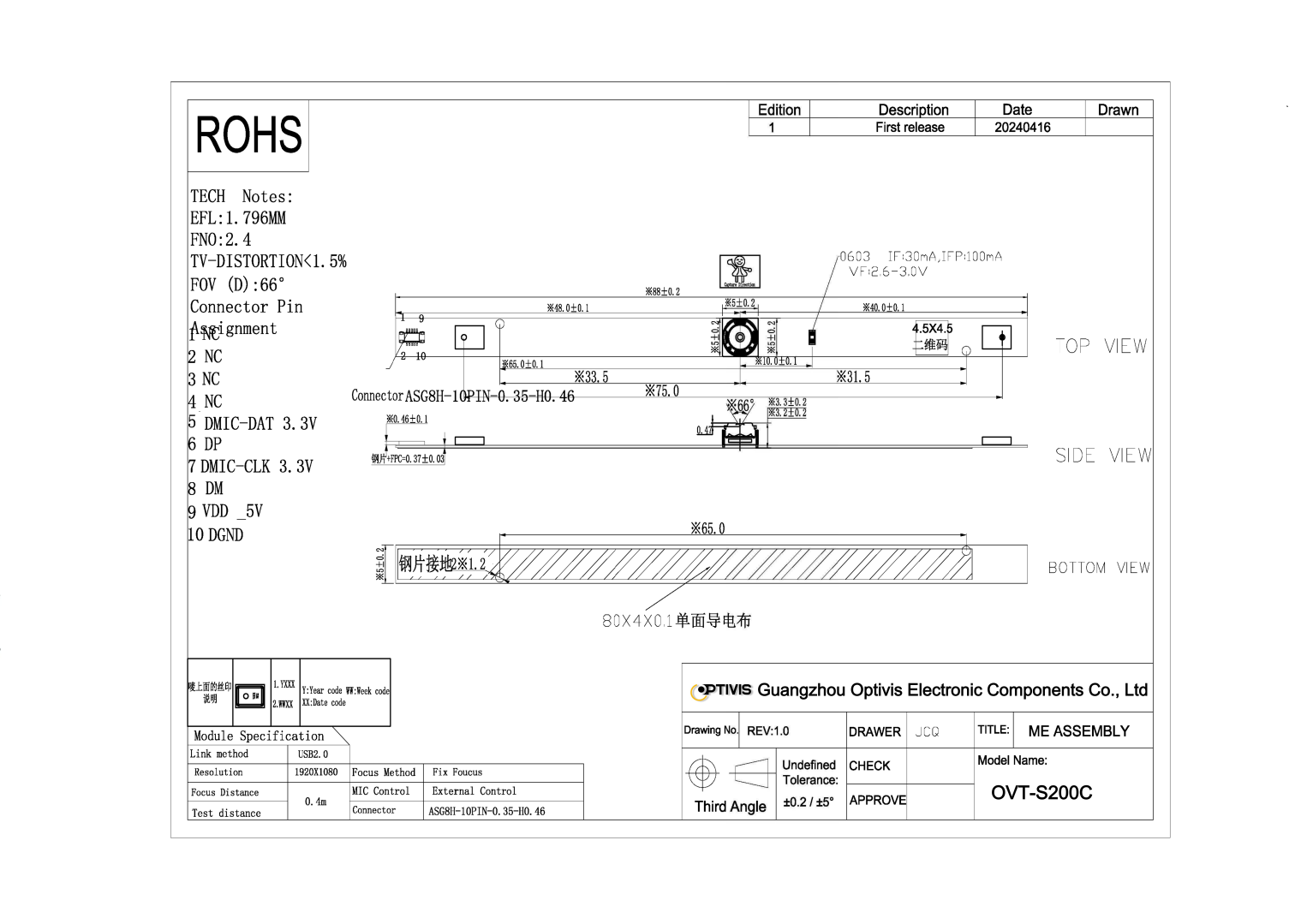

This compact module (88×5×3.3mm) features fixed focus (0.4m), a 3P+IR lens with 66° field of view, F/2.4 aperture, and a 650nm IR-cut filter for accurate color reproduction. It integrates a high-performance PDM digital MEMS microphone (DMIC) for clear, low-noise audio capture, ideal for video calls and voice recording.
Fully UVC compliant, it supports plug-and-play on Windows 7/8/10/11 without additional drivers. It has passed strict reliability tests including thermal shock, vibration, free fall, and ESD protection, ensuring stable performance in demanding environments. RoHS compliant and designed for easy integration, OVT-S200C is the ideal choice for slim embedded vision, smart devices, and commercial display applications.
|
Size |
88*5*3.4mm |
|---|---|
|
Sensor |
1/5’’-inch SC CMOS |
|
Pixel Size |
1.12um x 1.12um |
|
Resolution |
1920H x 1080 V |
|
Output Format |
MJPEG, YUV2 |
|
FOV |
66 Degree |
|
Shutter Type |
Electronic rolling shutter |
|
Interface |
High Speed USB2.0 |
|
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White Balance, Backlight Contrast, Exposure |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
Cable Length |
Default 1.0 Meter USB Cable |
|
Format |
Resolution |
FrameRate (USB2.0) |
|---|---|---|
|
MJPEG |
1920 x 1080 |
15-30FPS |
|
|
1280 x 960 |
15-30FPS |
|
|
1280 x 720 |
15-30FPS |
|
|
800 x 600 |
15-30FPS |
|
|
640 x 480 |
15-30FPS |
|
|
320 x 240 |
15-30FPS |
|
YUV2 |
1920 x 1080 |
0-3FPS |
|
|
1280 x 960 |
0-5FPS |
|
|
1280 x 720 |
0-10FPS |
|
|
800 x 600 |
0-15FPS |
|
|
640 x 480 |
15-30FPS |
|
|
320 x 240 |
15-30FPS |
