OPTIVIS 2MP USB2.0 High Sensitivity Daul Camera Module
OPTIVIS 2MP USB2.0 RGB+IR wide dynamic Camera Module
This OVT-S985C is a high-performance USB 2.0 camera module supporting both RGB visible light and IR infrared imaging up to 1080P FHD resolution. Compliant with standard USB UVC protocol, it works seamlessly with Windows, Linux, Android and other systems. Featuring 85dB wide dynamic range, 73.9° wide field of view, fixed focus and high-sensitivity sensors, the module delivers clear, low-noise images with auto exposure, white balance and gain control. Built with reliable packaging and patented algorithms, it is ideal for embedded vision, industrial imaging, low-power devices and night-vision applications.
|

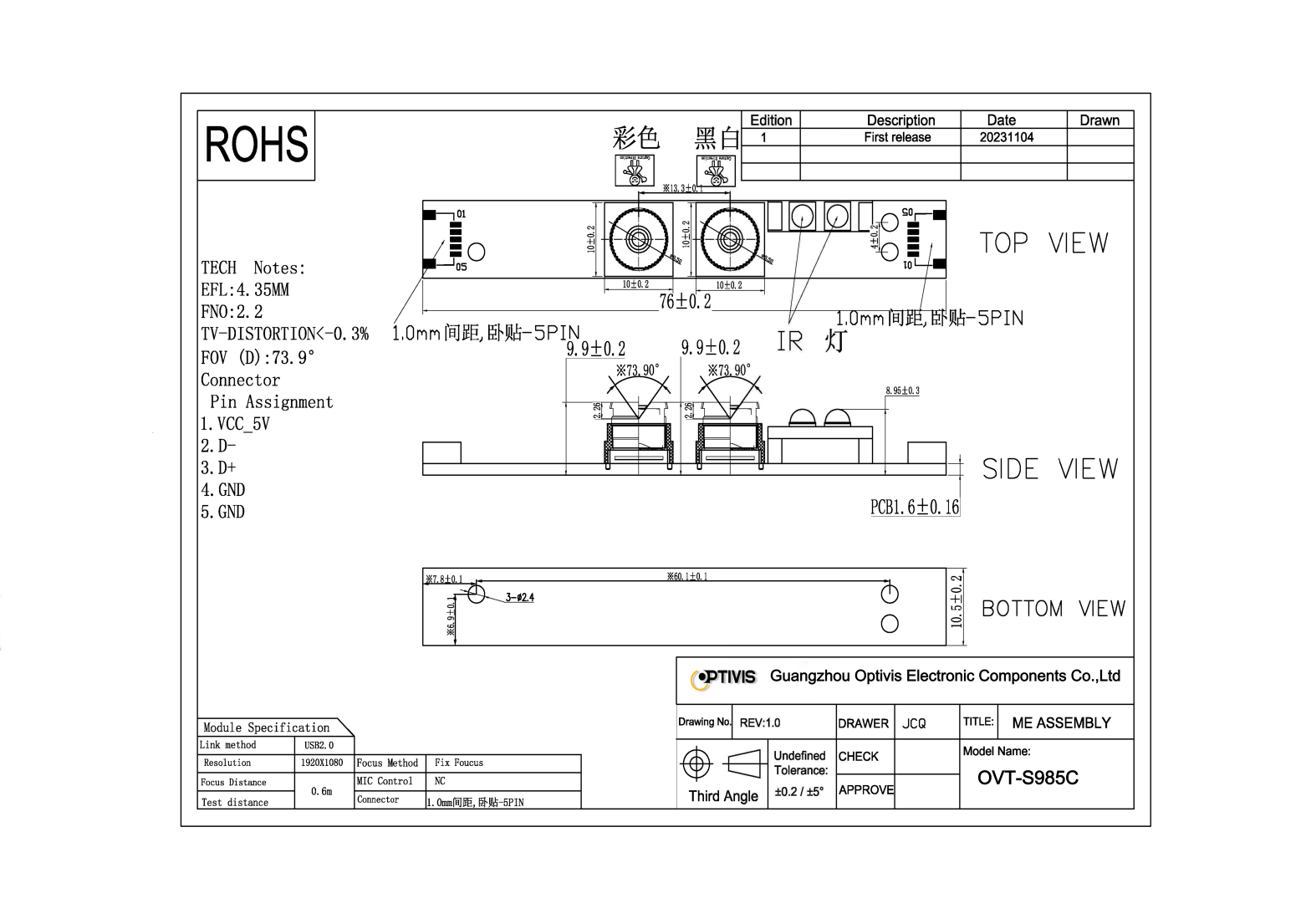

Size |
76*10.5*9.9mm |
|---|---|
|
Sensor |
1/2.7’’-inch CMOS |
|
Pixel Size |
3.0um x 3.0um |
|
Resolution |
1920H x 1080 V |
|
Output Format |
MJPEG, YUV2 |
|
FOV |
73.9 Degree |
|
Shutter Type |
Electronic rolling shutter |
|
Interface |
High Speed USB2.0 |
|
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White Balance, Backlight Contrast, Exposure |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
Cable Length |
Default 1.0 Meter USB Cable |
|
Format |
Resolution |
FrameRate (USB2.0) |
|---|---|---|
|
MJPEG |
1920 x 1080 |
20FPS |
|
|
1280 x 960 |
20FPS |
|
|
1280 x 720 |
20FPS |
|
|
800 x 600 |
20FPS |
|
|
640 x 480 |
20FPS |
|
YUV2 |
1920 x 1080 |
5FPS |
|
|
1280 x 960 |
5FPS |
|
|
1280 x 720 |
5FPS |
|
|
800 x 600 |
20FPS |
|
|
640 x 480 |
20FPS |
