OPTIVIS 8MP High-definition USB2.0 Camera

This high-definition 8MP 4K USB2.0 camera module is built around a 1/2.8-inch IMX415 CMOS sensor, supporting a maximum resolution of 3840×2160 for sharp, detailed 4K video and image capture. It supports MJPEG and YUY2 output formats, delivering smooth 30FPS at 4K resolution in MJPEG mode for real-time imaging applications.

The module features a 120° ultra-wide field of view, a high-quality 4G2P+IR 650nm lens with EFL 2.35mm and F/2.4, and offers fixed focus or manual focus options. A built-in digital microphone supports synchronized audio and video capture, while the electronic rolling shutter ensures stable imaging.

Fully UVC compliant, this camera module supports plug-and-play operation across Windows, Android, Linux, Mac OS and other systems without additional drivers. Adjustable parameters include brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation and exposure for flexible imaging control.

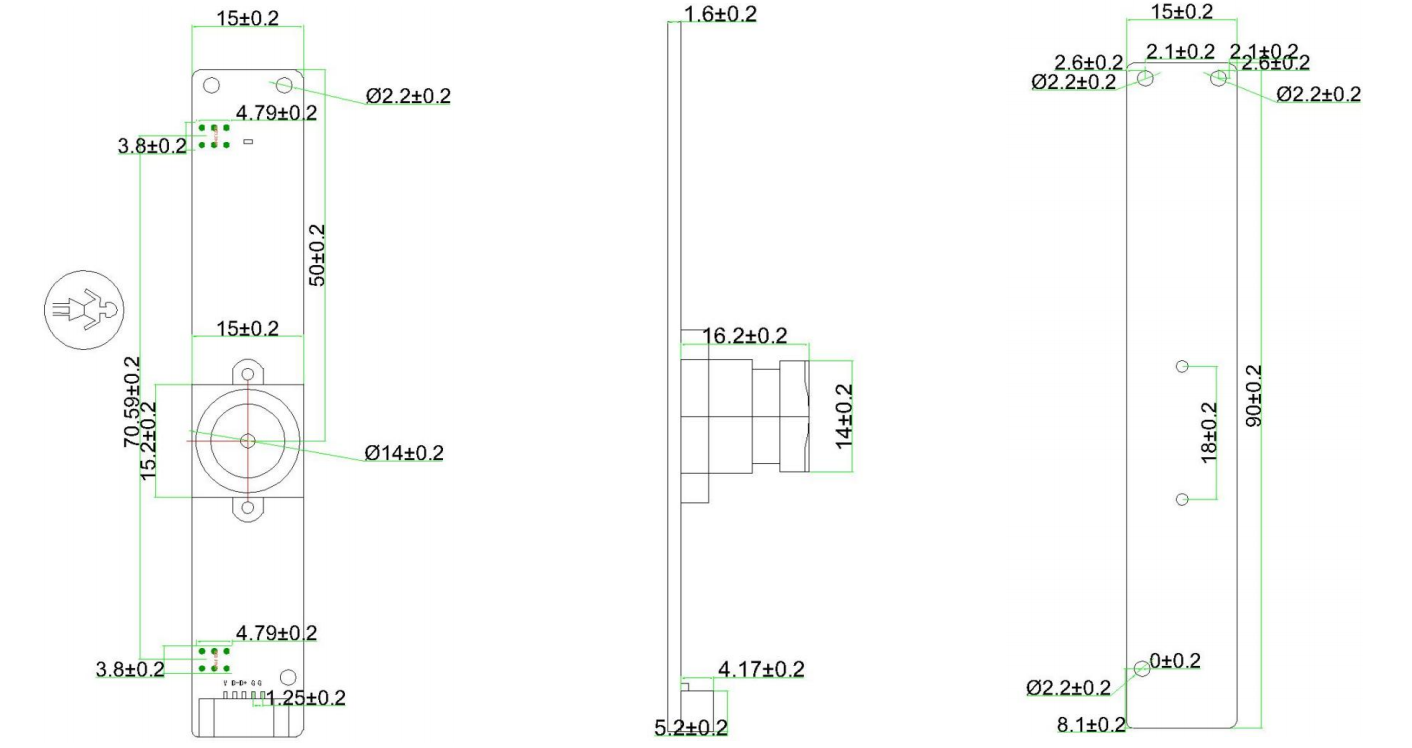

With a compact 90×15mm form factor, 5PIN 1.25mm connector and USB2.0 high-speed interface, the module is powered by 5V DC and draws 230mA operating current. It operates reliably in temperatures from -20°C to 60°C, making it well-suited for industrial vision, smart devices, video conferencing, surveillance and embedded imaging projects.
