OPTIVIS 2MP High-quality USB2.0 Camera Module

The OVT-2053B is a high-quality 2-megapixel USB camera module designed for industrial vision, smart devices, and embedded imaging applications. Equipped with a 1/2.9-inch GC2053 CMOS sensor and electronic rolling shutter, it delivers crisp 1920×1080 full-HD video with stable performance.

This module supports MJPEG and YUY2 output formats, reaching 30FPS at 1080P in MJPEG mode for smooth real-time video. It features a 100° field of view, 2.8mm lens (F/NO:2.4, 2G2P+650IR), and supports both fixed and manual focus for flexible deployment.

Fully UVC compliant, it offers plug-and-play operation on Windows, Android, Linux, and Mac OS without additional drivers. Adjustable parameters include brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight contrast, and exposure.

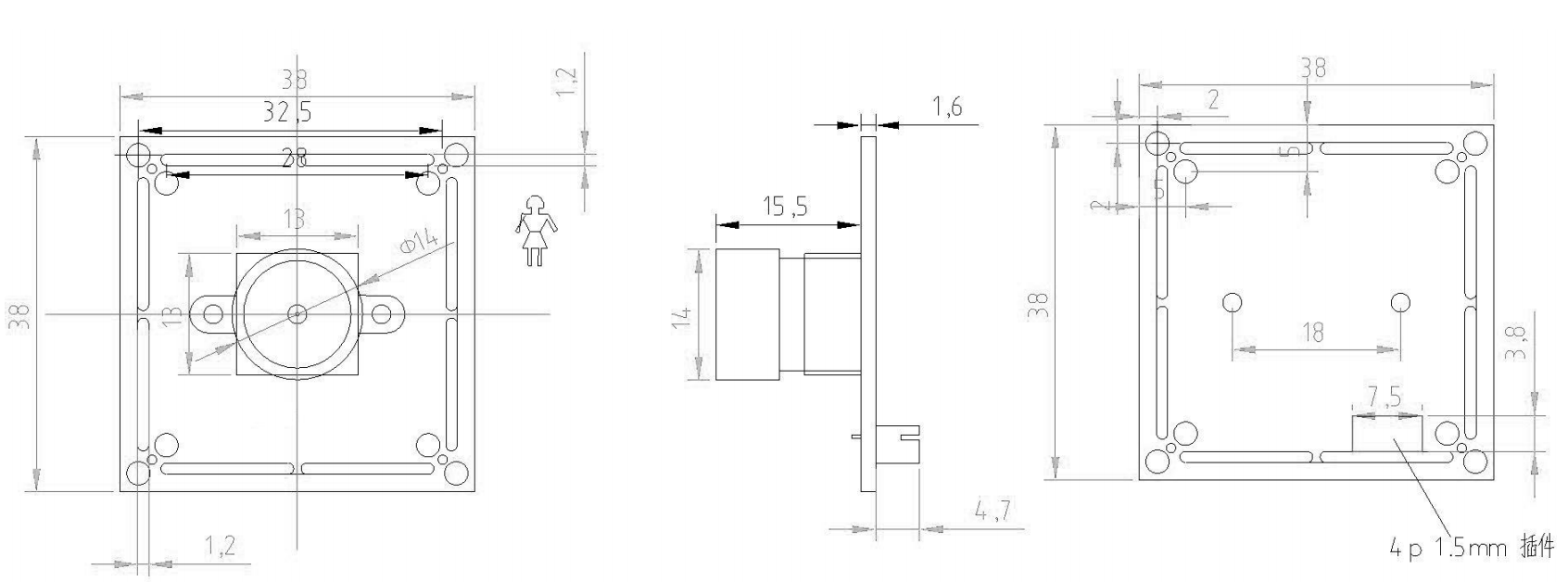

With a compact 38×38mm size, 5V DC power input, 160mA working current, and an operating temperature range of -20°C to 60°C, this module is reliable for long-term use in diverse environments. It uses a 4PIN 2.0mm connector and comes with a 1.0-meter USB cable for easy integration.
