OPTIVIS 16MP Split-type USB2.0 Camera

This high-resolution 16MP USB2.0 camera module is equipped with a 1/2.8-inch IMX298 CMOS sensor, supporting a maximum resolution of 4624×3468 for professional-level image capture. It supports both MJPG and YUY2 output formats, delivering 10FPS at 16MP and smooth 30FPS at 1080p for reliable real-time video performance.

Designed for high-quality imaging, it features a 6P plastic lens (EFL 3.95mm) with a 78.4° diagonal field of view, and supports both fixed focus (FF) and auto focus (AF) to meet different application needs. The module uses an electronic rolling shutter and offers full adjustable imaging parameters, including brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation, and exposure.

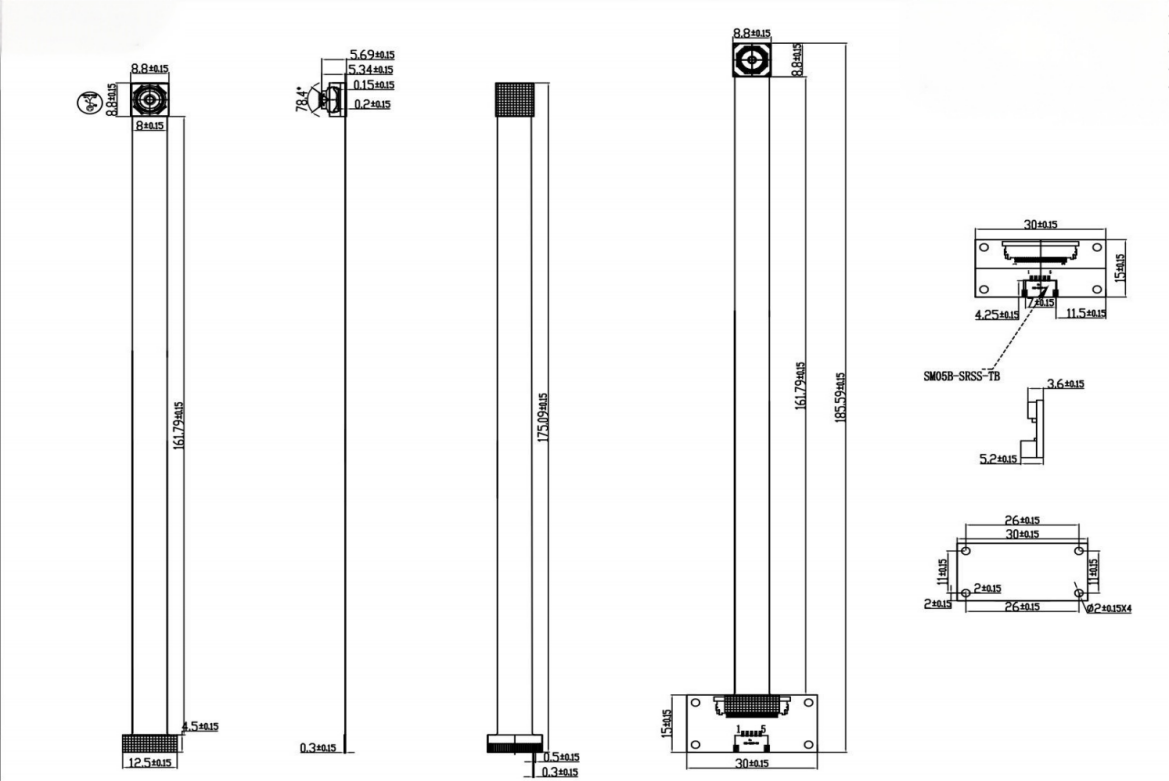

Fully UVC-compliant for true plug-and-play operation, it works seamlessly with Windows, Android, Linux, Wince, and Mac OS without additional drivers. It adopts a compact PCB plus FPC separated structure for easy installation, with a module size of 185×30×5mm and a standard 1-meter USB cable.

Powered by DC 5V with an operating current of 250mA, this camera module operates reliably in temperatures from -10°C to 60°C. It is packaged in anti-static vacuum packaging for safe transportation and storage, making it ideal for high-definition imaging, industrial vision, smart devices, video conferencing, and professional embedded systems.
