OPTIVIS 12MP Ultra-slim USB2.0 Camera Module With IMX258 CMOS Sensor
OPTIVIS 12MP Ultra-slim USB2.0 Camera
This high-resolution 12MP USB2.0 camera module is powered by a 1/3.06-inch IMX258 CMOS sensor, delivering a maximum resolution of 3840×3104 for detailed image capture. It supports MJPEG output format and achieves smooth 30FPS at 4K (3840×2160) and all common lower resolutions, ideal for high-definition real-time video applications.
The module offers auto focus, fixed focus and manual focus options, with a 75° or 90° field of view for AF versions. It features an electronic rolling shutter, built-in digital two-way audio for synchronized audio and video transmission, and supports full software adjustment including brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation and exposure.
UVC compliant and plug-and-play ready, this camera module works seamlessly with Windows, Android, Linux, Wince and Mac OS without additional drivers. It uses a high-speed USB2.0 interface with a 5PIN 1.0MM socket, powered by 5V DC with 190mA operating current.

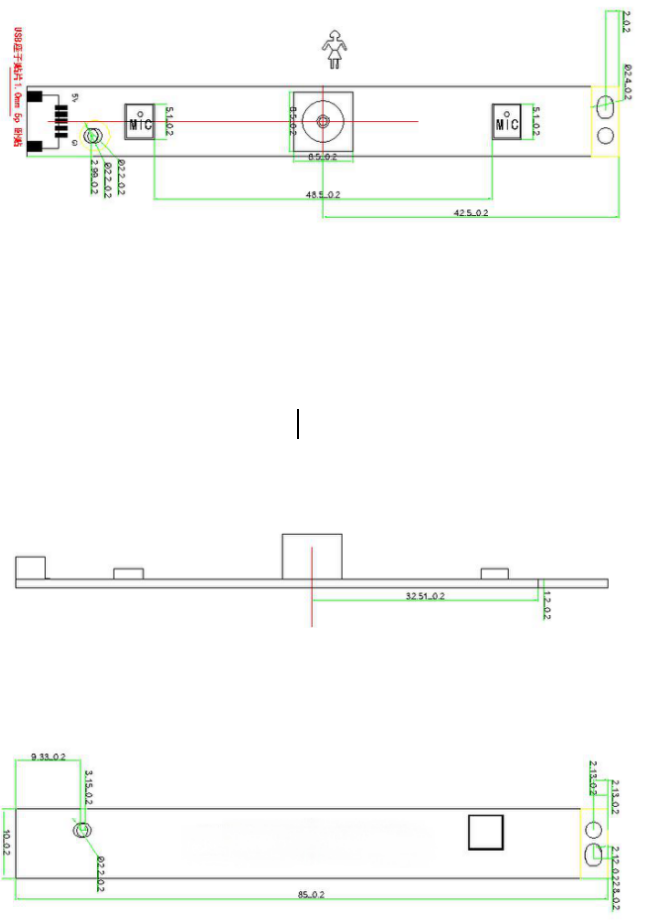

With a slim, compact size of 85×10mm, it operates reliably in temperatures from -20°C to 60°C and is packed in antistatic vacuum packaging for industrial protection. This module is well-suited for high-definition video conferencing, industrial vision, smart devices, embedded systems and professional imaging projects.
|
Size |
85*10mm |
|---|---|
|
Sensor |
1/3.06’’ Sony IMX258 CMOS Sensor |
|
Pixel Size |
1.12um x 1.12um |
|
Resolution |
3840 H x 3104 V |
|
Output Format |
MJPEG |
|
FOV |
90 Degree |
|
EFL |
3.6mm |
|
Audio |
Digital two way Microphone |
|
Shutter Type |
Electronic Rolling shutter |
|
Interface |
High Speed USB2.0 |
|
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White Balance, Backlight Contrast, Exposure |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
Cable Length |
Default 1.0 Meter USB Cable |
|
Format |
Resolution |
FrameRate (USB2.0) |
|---|---|---|
|
MJPEG |
3840 x 3104 |
15FPS |
|
|
3840 x 2160 |
30FPS |
|
|
3264x2448 |
30FPS |
|
|
2592 x1944 |
30FPS |
|
|
2048 x 1536 |
30FPS |
|
|
1920 x 1080 |
30FPS |
|
|
1280 x 720 |
30FPS |
|
|
800 x 600 |
30FPS |
|
|
640 x 480 |
30FPS |
