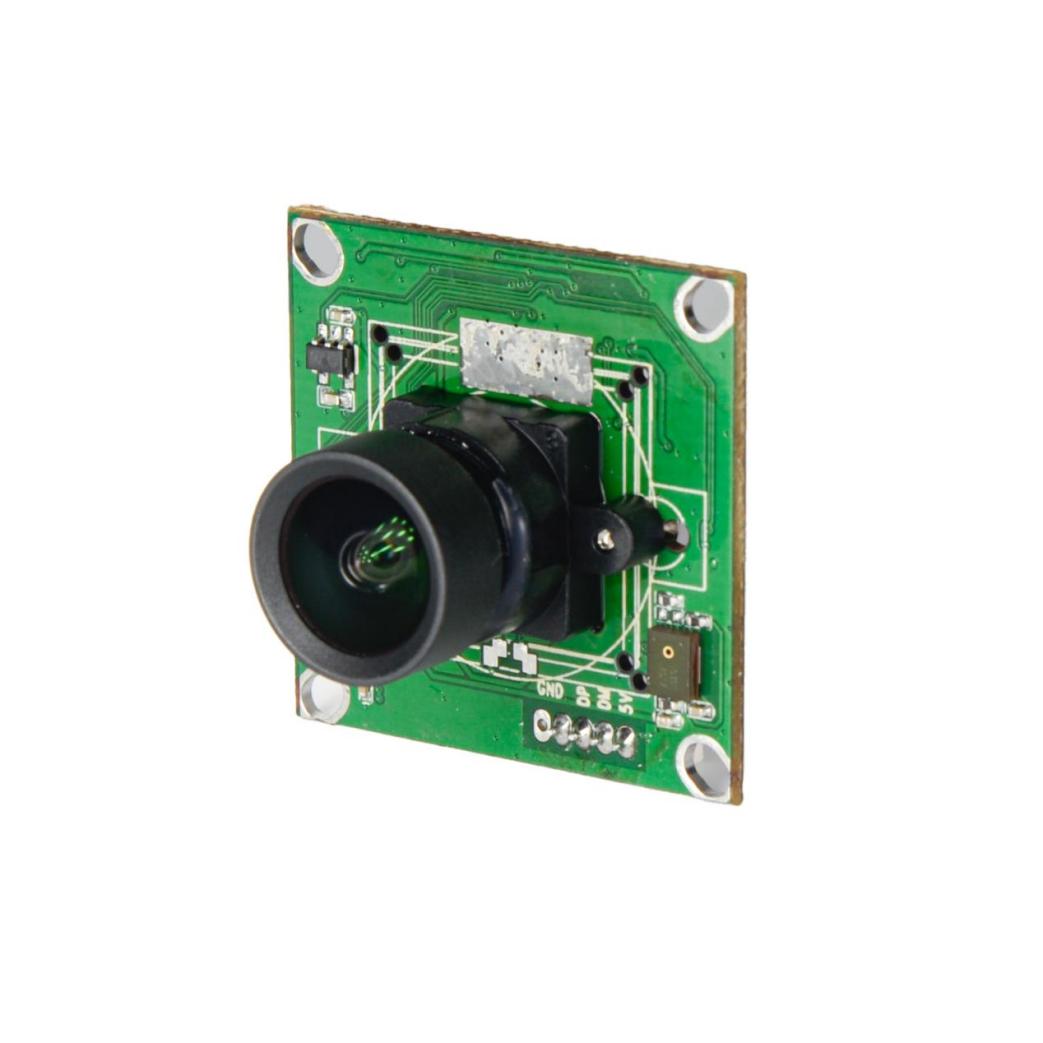

OPTIVIS 1.3MP High Frame Rate 120FPS USB2.0 Global Shutter Camera Module
标题一OPTIVIS 1.3MP USB2.0 Global Shutter Camera Module
This OVT-S132C USB2.0 camera module is a high-performance imaging solution offering 1.3 megapixel resolution, which is capable of capturing images at an impressive frame rate of 120fps with global shutter, also is particularly useful for capturing fast-moving objects without distortion. Additionally this module supports NIR imaging, making it suitable for low-light or infrared applications.
Its combination of high frame rate, global shutter, and infrared capabilities make it versatile choice for industrial, scientific, and machine vision applications.
|

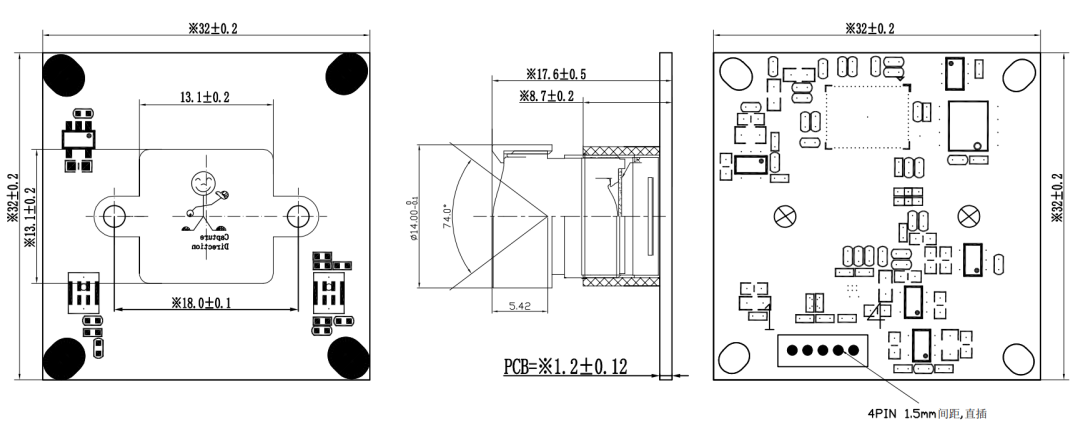

Size |
32*32mm |
|---|---|
|
Sensor |
1/4’’-inchSC132GS CMOS |
|
Pixel Size |
2.7um x 2.7um |
|
Resolution |
1088 H x 1280 V |
|
Output Format |
MJPEG |
|
FOV |
74 Degree |
|
Shutter Type |
Global shutter |
|
Interface |
High Speed USB2.0 |
|
Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White Balance, Backlight Contrast, Exposure |
|
Supported OS |
Windows, Android, Linux, Wince, Mac OS |
|
Cable Length |
Default 1.0 Meter USB Cable |
|
Format |
Resolution |
FrameRate (USB2.0) |
|---|---|---|
|
MJPEG |
1088x1280 |
120FPS |
|
|
960 x 720 |
120FPS |
|
|
640 x 480 |
120FPS |
