OPTIVIS 11MP High-end USB2.0 Camera

This high-end 4K USB2.0 camera module is built on a 1/2.3-inch IMX378 CMOS sensor with 12.3MP effective pixels, delivering ultra-sharp imaging up to 3840×2880 (11MP) and smooth 3840×2160 4K@30fps in MJPEG mode. It supports both MJPEG and YUY2 output formats for flexible system integration.

Designed for premium performance, it features a 6P lens (EFL 4.77mm, F/1.75) with 79° autofocus field of view, and supports auto focus / fixed focus / manual focus to adapt to diverse scenarios. A built-in digital microphone enables synchronized audio-video capture, while the electronic rolling shutter ensures stable, clear imaging.

Fully UVC compliant and plug-and-play ready, the module works seamlessly with Windows, Android, Linux, and Mac OS without extra drivers. Full imaging controls are available: brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation, and exposure.

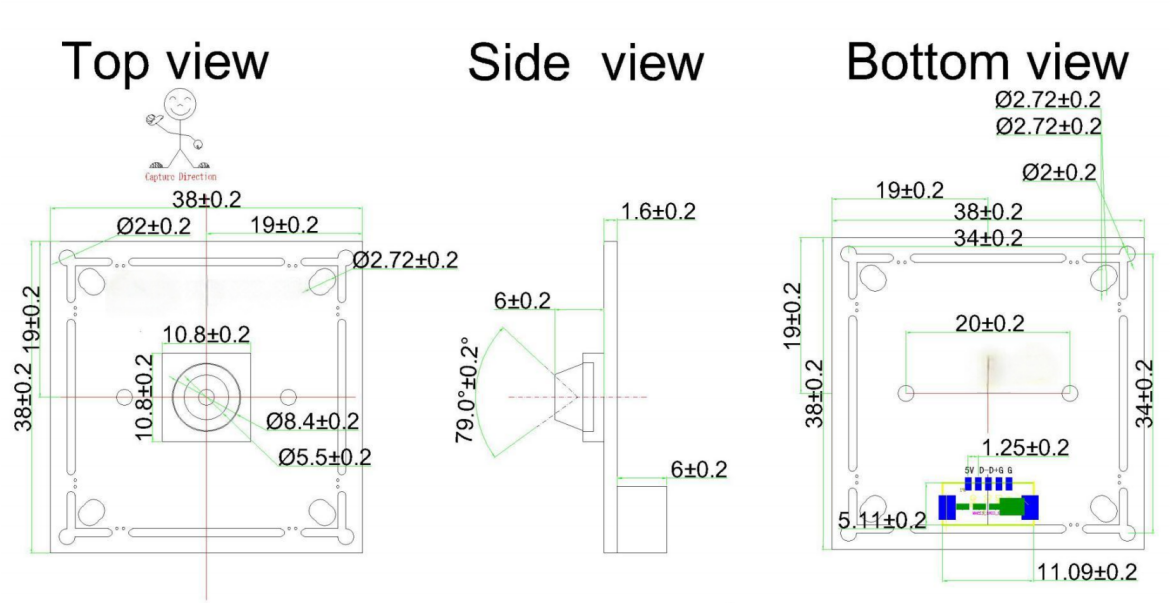

With a compact size (38×38mm or 32×32mm), 5-pin 1.25mm connector, and USB2.0 high-speed interface, it uses 5V DC power (190mA typical) and operates reliably from -20°C to 60°C. The module is packed in antistatic vacuum packaging for industrial durability, making it ideal for 4K live capture, industrial vision, smart devices, medical imaging, and high-definition embedded applications.
